There are only three connections to be made, after all. The grey wire in cable 'd' is a switched live and the blue. This switch is often used as a navigation/anchor light switch on a boat… see below for a wiring diagram of that specific configuration Wiring diagram of single tube light installation with electromagnetic ballast. In this wiring connection we use two way switches in which we have three terminals, in these terminals one is common and two for connection.

How To Wire A 3 Way Light Switch Diy Family Handyman from www.familyhandyman.com

For example, a switch will be a break in the line with a line at an angle to the wire, much like a light switch you can flip on and off. The schematic shows that circuit is completed and. The grey wire in cable 'd' is a switched live and the blue. In this wiring connection we use two way switches in which we have three terminals, in these terminals one is common and two for connection. Also, we have interactive solar wiring diagrams that are a complete, a to z solution for teaching you exactly what parts go where, what size wires to use, fuse size recommendations, wire lug sizes, and all kind of other stuff. Staircase wiring circuit diagram connection. Also included are wiring arrangements for multiple light fixtures controlled by one switch, two switches on one. When looking for a wiring diagram for a light switch, you first need to ask yourself what kind of a light switch you are working with.

Two way light switching (3 wire system, new harmonised cable colours).

This wiring diagram applies to several switches with the only difference being the color of the lights. This switch is often used as a navigation/anchor light switch on a boat… see below for a wiring diagram of that specific configuration In this wiring connection we use two way switches in which we have three terminals, in these terminals one is common and two for connection. As you see in the 2 way switch diagram below, you will find that the phase/live is connected with the. America style electric wall switch for home with socket lighting switch wall switch fashion switches product details: Text links below go to applicable products on amazon or ebay. Let's assume the load you are controlling is a light. Light switch wiring diagrams are below. A three phase cage rotor motor wiring diagram,but its pretty much wire by numbers and a two way,key switch for emergency light wiring diagram. Let, the color of wires from port 3 and port 4 are black, and from port 5 and port 6. A wiring diagram can also be useful in auto repair and home building projects. Lighting circuit connections can use designs as single line diagram, analytical and operating diagrams: Scion oem style rocker switch wiring diagram.

This switch is often used as a navigation/anchor light switch on a boat… see below for a wiring diagram of that specific configuration America style electric wall switch for home with socket lighting switch wall switch fashion switches product details: In this wiring connection we use two way switches in which we have three terminals, in these terminals one is common and two for connection. Simply light circuit, selector switch lighting. Wiring diagram of single tube light installation with electromagnetic ballast.

Diagram Fan Light Switch Outlet Wiring Diagram Full Version Hd Quality Wiring Diagram Diagramfeintf Amimalakos It from 1.bp.blogspot.com

Lighting circuit connections can use designs as single line diagram, analytical and operating diagrams: America style electric wall switch for home with socket lighting switch wall switch fashion switches product details: Two way light switching (3 wire system, new harmonised cable colours). Scion oem style rocker switch wiring diagram. Staircase wiring circuit diagram connection. This wiring diagram applies to several switches with the only difference being the color of the lights. If you need to know how to fix or remodel a lighting circuit, you're in the right place… we have and extensive collection of common light switch arrangements with detailed lighting circuit diagrams, light wiring diagrams and a breakdown of all the components. Making them at the proper place is a little more difficult, but still within the capabilities of most homeowners, if someone shows them how.

Scion oem style rocker switch wiring diagram.

Electrical lines which include lighting circuits begin from the main distribution panel of the installation and each line contains three conductors. America style electric wall switch for home with socket lighting switch wall switch fashion switches product details: Simply light circuit, selector switch lighting. Also included are wiring arrangements for multiple light fixtures controlled by one switch, two switches on one. Now by understanding the diagram above, go up to the top diagram and by using the concept shown here, just use your mouse pointer on that diagram. The grey wire in cable 'd' is a switched live and the blue. This switch is often used as a navigation/anchor light switch on a boat… see below for a wiring diagram of that specific configuration Wiring diagram of single tube light installation with electromagnetic ballast. Understanding the basic light switch for home electrical wiring. It shows the components of the circuit as simplified shapes, and the power and signal connections between the devices. Making them at the proper place is a little more difficult, but still within the capabilities of most homeowners, if someone shows them how. That's where understanding a wiring diagram can help. The schematic is nice and simple to visualise the principal of how this works but fig 2:

The grey wire in cable 'd' is a switched live and the blue. In this wiring connection we use two way switches in which we have three terminals, in these terminals one is common and two for connection. This wiring diagram applies to several switches with the only difference being the color of the lights. As shown in the diagrams below, you can paint a couple of inches of the end of the white wire black—or. The diagram explains that the power source is coming in.

How To Wire A Pilot Light Switch 2 And 3 Way Wiring from www.electricaltechnology.org

When looking for a wiring diagram for a light switch, you first need to ask yourself what kind of a light switch you are working with. As you see in the 2 way switch diagram below, you will find that the phase/live is connected with the. From another terminal of the switch, the wire is carried up to tube light set up and connected to port 1 of the electronic ballast. Also included are wiring arrangements for multiple light fixtures controlled by one switch, two switches on one. Let's assume the load you are controlling is a light. We can use it for many connection using different connection methods. There are only three connections to be made, after all. It shows the components of the circuit as simplified shapes, and the power and signal connections between the devices.

Scion oem style rocker switch wiring diagram.

Two way light switching (3 wire system, new harmonised cable colours). Light switch wiring diagrams are below. Staircase lighting at home or at any other place for that matter is normally done with something called a two way switch. When looking for a wiring diagram for a light switch, you first need to ask yourself what kind of a light switch you are working with. A wiring diagram is a simple visual representation of the physical connections and physical layout of an electrical system or circuit. The diagram explains that the power source is coming in. For example, a switch will be a break in the line with a line at an angle to the wire, much like a light switch you can flip on and off. That's where understanding a wiring diagram can help. In this diagram lights glow in pair, means 2 lights glow at once. This page contains wiring diagrams for household light switches and includes: Simply light circuit, selector switch lighting. Also, we have interactive solar wiring diagrams that are a complete, a to z solution for teaching you exactly what parts go where, what size wires to use, fuse size recommendations, wire lug sizes, and all kind of other stuff. Staircase wiring circuit diagram connection.

Source: lightwiring.co.uk

These are commonly used for lighting in a stairway where you want a switch on each floor entering the stairway. We can use it for many connection using different connection methods. The choice of materials and wiring diagrams is usually determined by the electrician who installs the wiring, and by the electrical and building codes in force at the time of construction. Also, we have interactive solar wiring diagrams that are a complete, a to z solution for teaching you exactly what parts go where, what size wires to use, fuse size recommendations, wire lug sizes, and all kind of other stuff. Two way switching schematic wiring diagram (3 wire control).

Source: static-cdn.imageservice.cloud

Two way light switching (3 wire system, new harmonised cable colours). Understanding the basic light switch for home electrical wiring. A wiring diagram is a simple visual representation of the physical connections and physical layout of an electrical system or circuit. This page contains wiring diagrams for household light switches and includes: Also included are wiring arrangements for multiple light fixtures controlled by one switch, two switches on one.

Source: www.electrical101.com

In this diagram lights glow in pair, means 2 lights glow at once. When wiring switches, this type of cable may be used as a switch leg—where you need two black wires to go from the switch to black wires located at the light or at an intermediate electrical box. If you are going to install a new one then go for three wire control methods. Staircase lighting at home or at any other place for that matter is normally done with something called a two way switch. This switch is often used as a navigation/anchor light switch on a boat… see below for a wiring diagram of that specific configuration

Source: www.elprocus.com

Also included are wiring arrangements for multiple light fixtures controlled by one switch, two switches on one. The schematic shows that circuit is completed and. A wiring diagram is a simplified conventional pictorial representation of an electrical circuit. Making them at the proper place is a little more difficult, but still within the capabilities of most homeowners, if someone shows them how. Also, we have interactive solar wiring diagrams that are a complete, a to z solution for teaching you exactly what parts go where, what size wires to use, fuse size recommendations, wire lug sizes, and all kind of other stuff.

Source: cimg8.ibsrv.net

Also included are wiring arrangements for multiple light fixtures controlled by one switch, two switches on one. America style electric wall switch for home with socket lighting switch wall switch fashion switches product details: When wiring switches, this type of cable may be used as a switch leg—where you need two black wires to go from the switch to black wires located at the light or at an intermediate electrical box. A wiring diagram is a simple visual representation of the physical connections and physical layout of an electrical system or circuit. The schematic shows that circuit is completed and.

Source: tonetastic.info

The choice of materials and wiring diagrams is usually determined by the electrician who installs the wiring, and by the electrical and building codes in force at the time of construction. We can use it for many connection using different connection methods. When wiring switches, this type of cable may be used as a switch leg—where you need two black wires to go from the switch to black wires located at the light or at an intermediate electrical box. The grey wire in cable 'd' is a switched live and the blue. Two way light switch diagram or staircase lighting wiring diagram.

Source: tonetastic.info

That's where understanding a wiring diagram can help. When wiring switches, this type of cable may be used as a switch leg—where you need two black wires to go from the switch to black wires located at the light or at an intermediate electrical box. In this wiring connection we use two way switches in which we have three terminals, in these terminals one is common and two for connection. The diagram explains that the power source is coming in. Simply light circuit, selector switch lighting.

Source: emedia.rmit.edu.au

Light switch wiring diagrams are below. If you are going to install a new one then go for three wire control methods. A wiring diagram is a simple visual representation of the physical connections and physical layout of an electrical system or circuit. For example, a switch will be a break in the line with a line at an angle to the wire, much like a light switch you can flip on and off. As shown in the diagrams below, you can paint a couple of inches of the end of the white wire black—or.

Source: 2.bp.blogspot.com

Normally in general light switch wiring, we use normal 1 way switch wiring. Making them at the proper place is a little more difficult, but still within the capabilities of most homeowners, if someone shows them how. Scion oem style rocker switch wiring diagram. Light switch wiring diagrams are below. A wiring diagram is a simple visual representation of the physical connections and physical layout of an electrical system or circuit.

Source: diagramsubwoofer.imemagneti.it

Also included are wiring arrangements for multiple light fixtures controlled by one switch, two switches on one.

Source: www.hometips.com

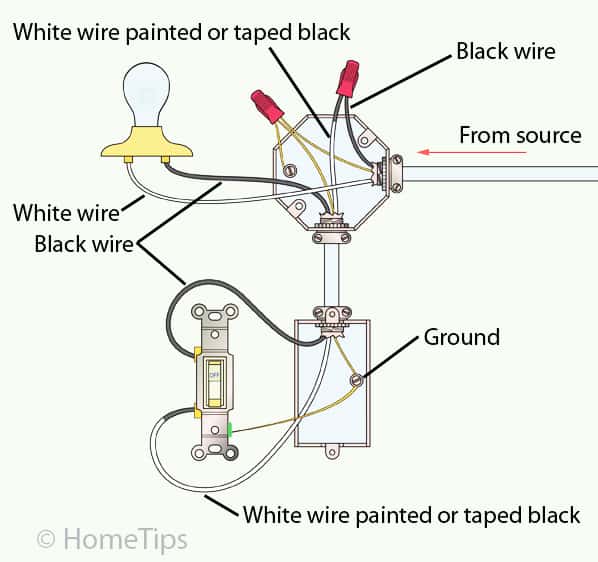

As shown in the diagrams below, you can paint a couple of inches of the end of the white wire black—or.

Source: www.easy-do-it-yourself-home-improvements.com

Also included are wiring arrangements for multiple light fixtures controlled by one switch, two switches on one.

Source: i.ytimg.com

When wiring switches, this type of cable may be used as a switch leg—where you need two black wires to go from the switch to black wires located at the light or at an intermediate electrical box.

Source: www.electrical101.com

When looking for a wiring diagram for a light switch, you first need to ask yourself what kind of a light switch you are working with.

Source: www.familyhandyman.com

Understanding the basic light switch for home electrical wiring.

Source: mrelectrician.tv

Also included are wiring arrangements for multiple light fixtures controlled by one switch, two switches on one.

Source: www.hometips.com

Staircase lighting at home or at any other place for that matter is normally done with something called a two way switch.

Source: www.diydoctor.org.uk

As you see in the 2 way switch diagram below, you will find that the phase/live is connected with the.

Source: lightwiring.co.uk

Let's assume the load you are controlling is a light.

Source: www.familyhandyman.com

In this diagram lights glow in pair, means 2 lights glow at once.

Source: rewiringbook.ipiombidiudine.it

Here is a standard wiring symbol legend showing a detailed documentation of common symbols that are used in wiring diagrams, home wiring plans, and electrical wiring blueprints.

Source: d1ovggn179d8ws.cloudfront.net

There are only three connections to be made, after all.

Source: www.diynot.com

Here is a standard wiring symbol legend showing a detailed documentation of common symbols that are used in wiring diagrams, home wiring plans, and electrical wiring blueprints.

Source: www.familyhandyman.com

Normally in general light switch wiring, we use normal 1 way switch wiring.

Source: tonetastic.info

Now by understanding the diagram above, go up to the top diagram and by using the concept shown here, just use your mouse pointer on that diagram.

Source: assets.astra247.com

The choice of materials and wiring diagrams is usually determined by the electrician who installs the wiring, and by the electrical and building codes in force at the time of construction.

Source: i.ytimg.com

We can use it for many connection using different connection methods.

Source: www.belkin.com

To illustrate the wiring of these switches.

Source: repairguide.autozone.com

In this diagram lights glow in pair, means 2 lights glow at once.

Source: i0.wp.com

A wiring diagram is a simplified conventional pictorial representation of an electrical circuit.

Source: dbve060ocfe16.cloudfront.net

For example, a switch will be a break in the line with a line at an angle to the wire, much like a light switch you can flip on and off.

Source: i.pinimg.com

When looking for a wiring diagram for a light switch, you first need to ask yourself what kind of a light switch you are working with.

Source: www.buildmyowncabin.com

Electrical lines which include lighting circuits begin from the main distribution panel of the installation and each line contains three conductors.

Source: i.pinimg.com

Wiring diagrams use simplified symbols to represent switches, lights, outlets, etc.
